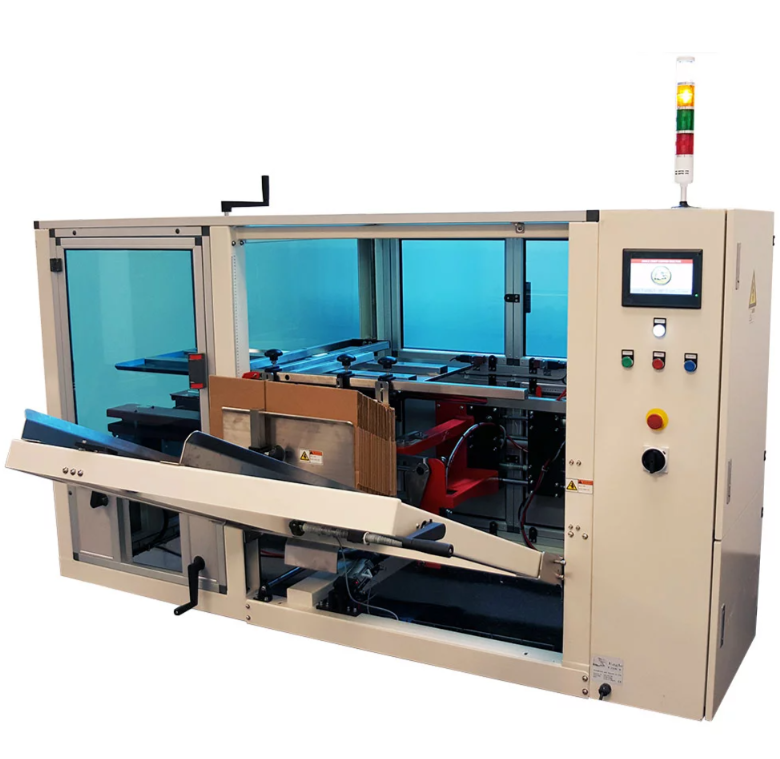

Eagle T20CF Carton Erector
From start to finish this carton erector constructs and seals the bottom of each carton in only 3 seconds! Rather than stopping your production, the vertical storage system allows the operator to load cartons. Also, the Eagle T20CF is suitable for various carton sizes. For example you can manually adjust carton sizes in under 2 minutes. In summary, these features provide for increased productivity.
Eagle T20CF Brochure
Eagle T20CF Operations Manual
Features:

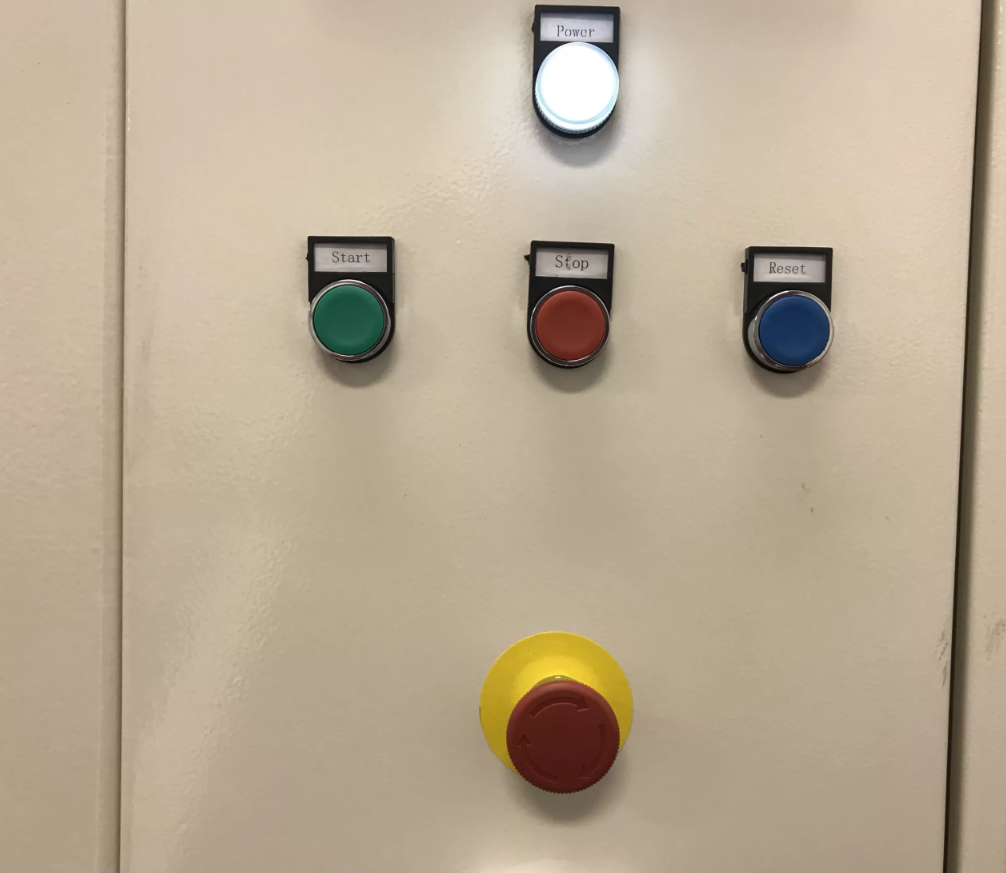

- 5-Point industry-leading emergency stop and safety system

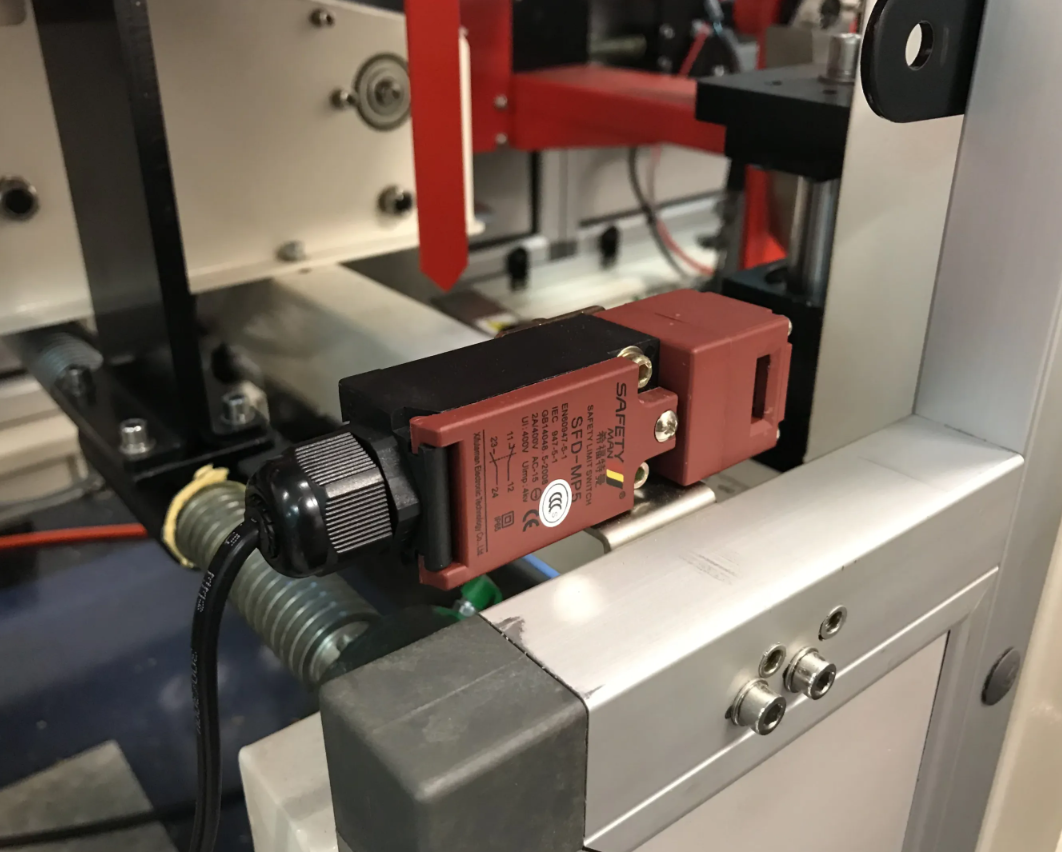

- Fully enclosed machine with safety access doors
- Tape head adjustable for 2″ or 3″ tape using the same head

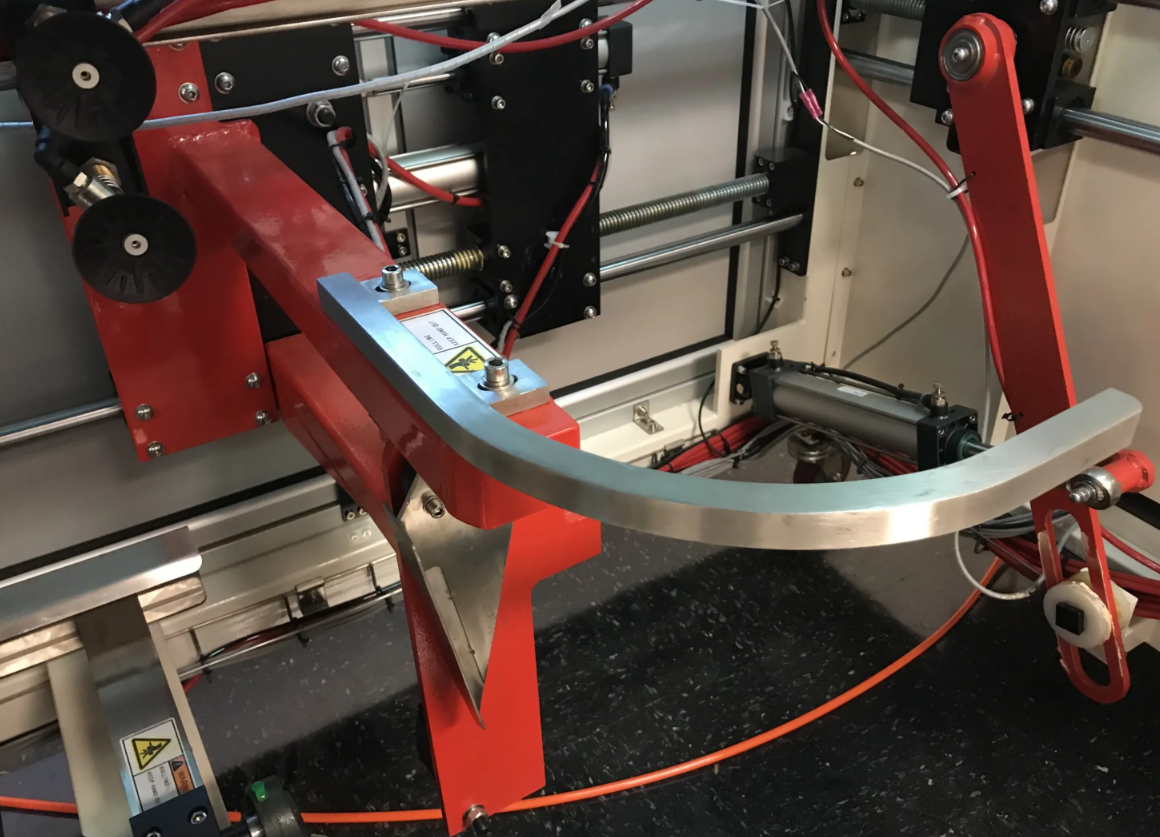

- Fully automatic case folding and sealing

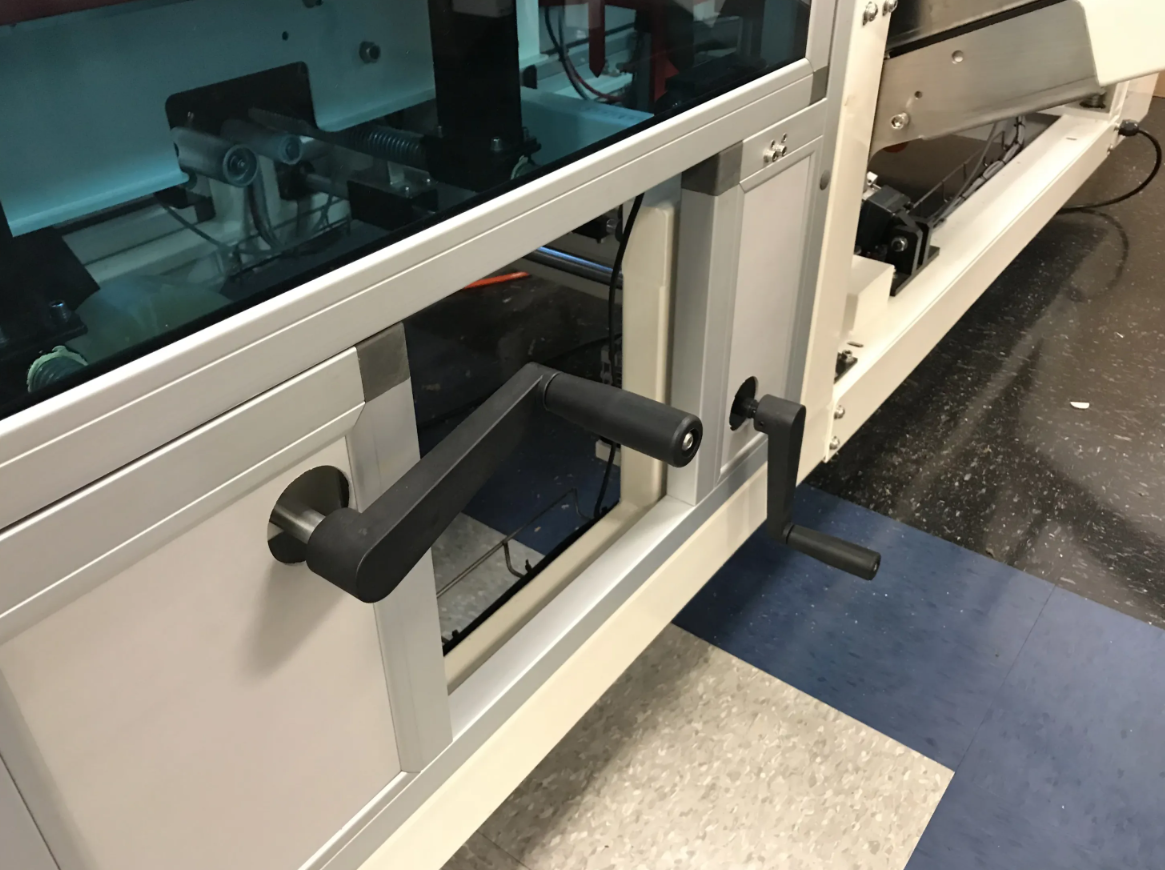

- Fast and simple case adjustment
- Low case warning alarm
- Broken tape warning alarm

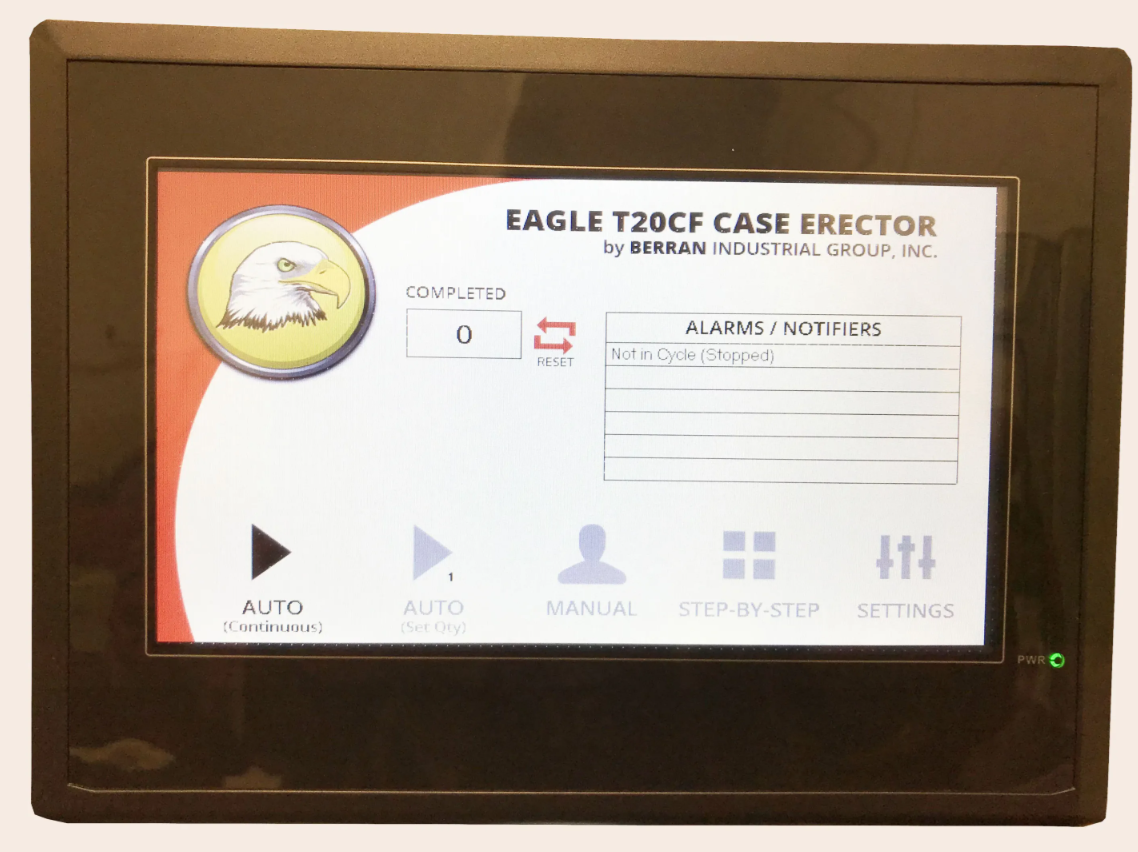

- Easy to use 7″ color touch screen
- Self-cleaning system
- Up to 12 cases per minute
| Power |
110VAC, 60Hz |
|---|---|

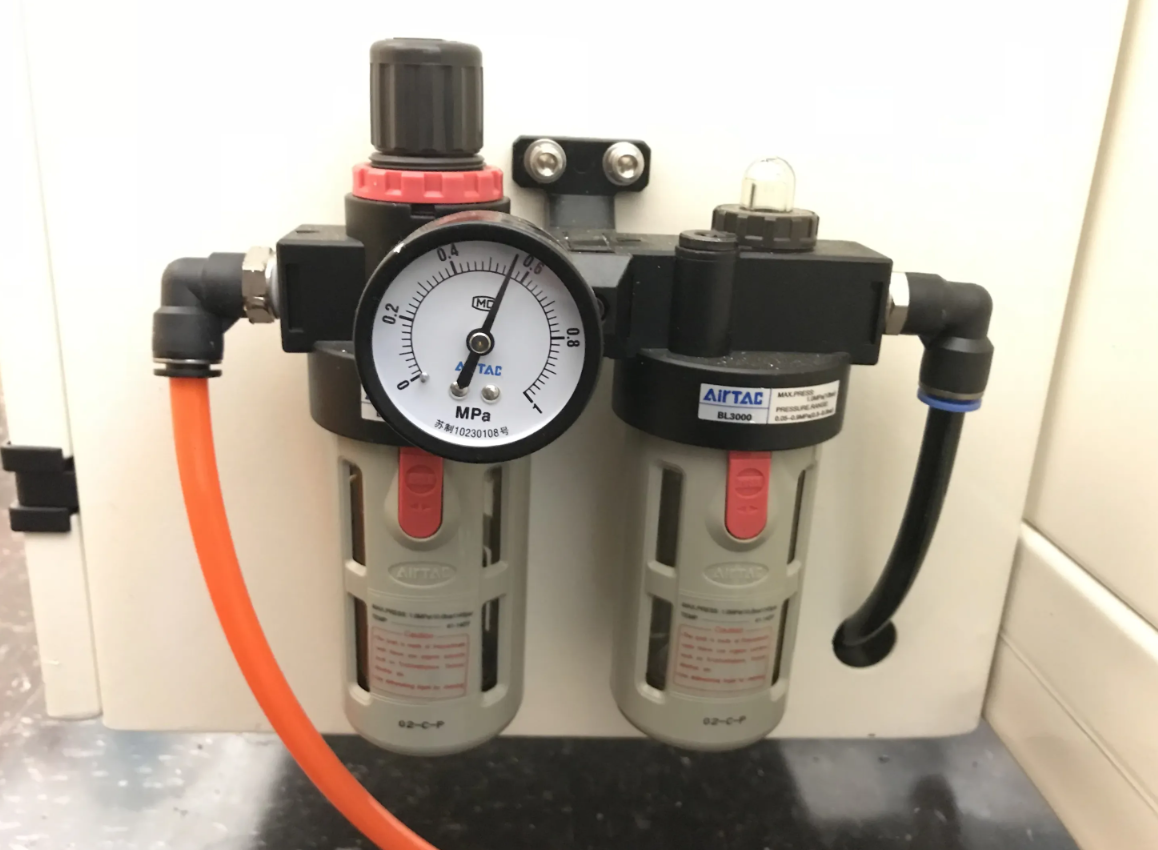

| Air source |
5 CFM @ 90PSI |
| Tape Width |
2" or 3" |
| Working Speed |
Up to 12 cases per minute |
| Case Size |
Length: 11-20.5in, 279.4-520.7mm, Width: 7-11in, 177.8-279.4mm |
| Machine Dimensions |
L86.6" x W80.7" x H53", L2422mm x W1963mm x H1615mm |
| Machine Weight |
881.8 lbs., 400kg |
| Working Environment |
Humidity: ≤90%, Temperature Range: 32-104ºF, 0-40ºC |
| Working Noise |
≤75dB (A) |
