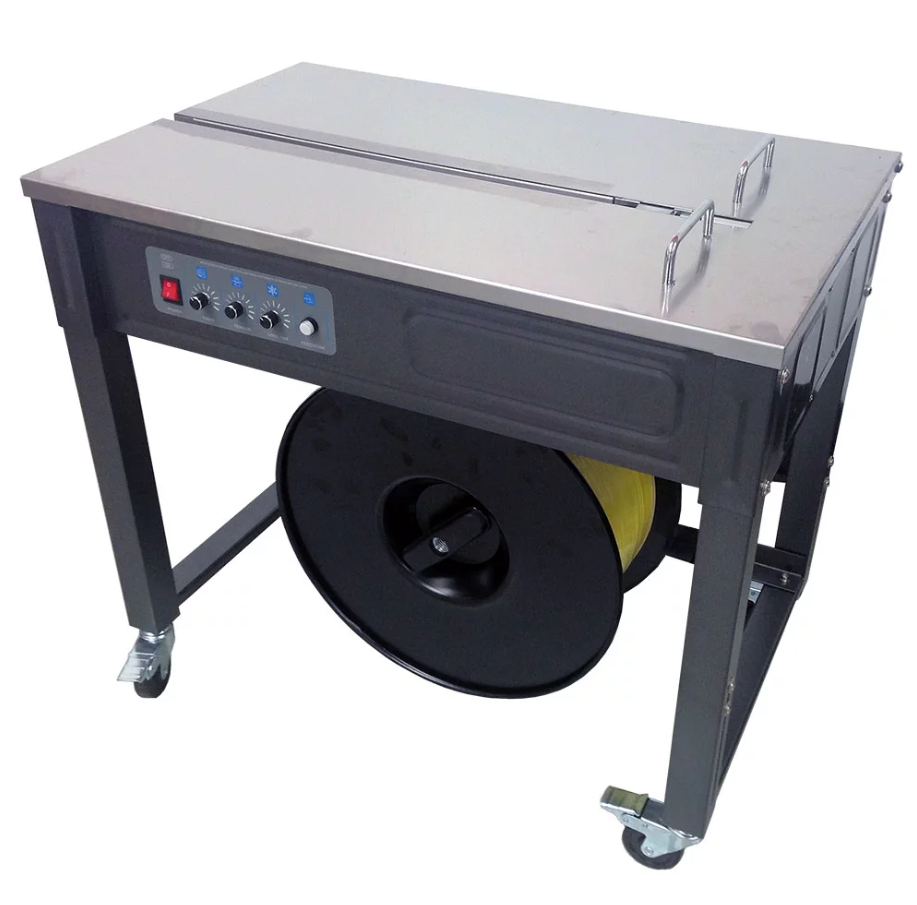

Eagle SP11 Semi-Automatic Strapping Machine

The Eagle SP11 is an eco-friendly strapping solution designed for quiet, efficient, and reliable operation. Powered by two direct-drive 24VDC motors, it eliminates the need for complicated belts and pulleys—resulting in fewer maintenance requirements and nearly silent performance.

Unlike manual spring-based systems, the SP11 uses electronic tension control, allowing operators to easily adjust strap tightness with precision. For added convenience, it features a height-adjustable design, stainless steel table top, and quad locking casters for mobility and stability. Safety is also a priority—the built-in switch cuts power automatically whenever the lid is open.

Perfect for warehouses, distribution centers, and shipping operations, the Eagle SP11 combines durability with operator-friendly features in a compact, high-performance design.

Key Features

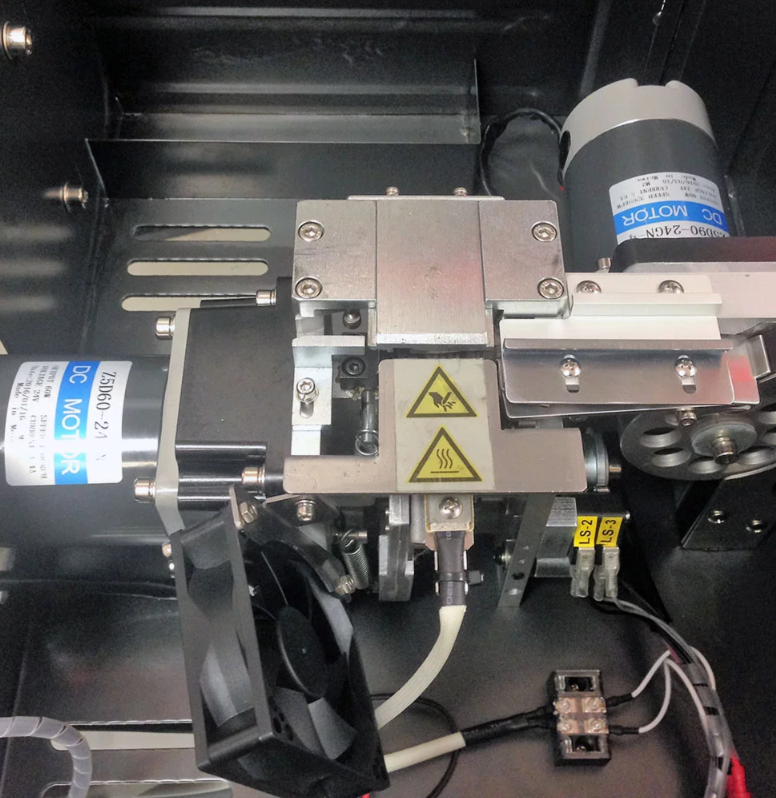

• Dual direct-drive 24V motors for low-maintenance, eco-friendly operation

• Quiet “silent” performance ideal for indoor use

• Supports 6–15mm strapping

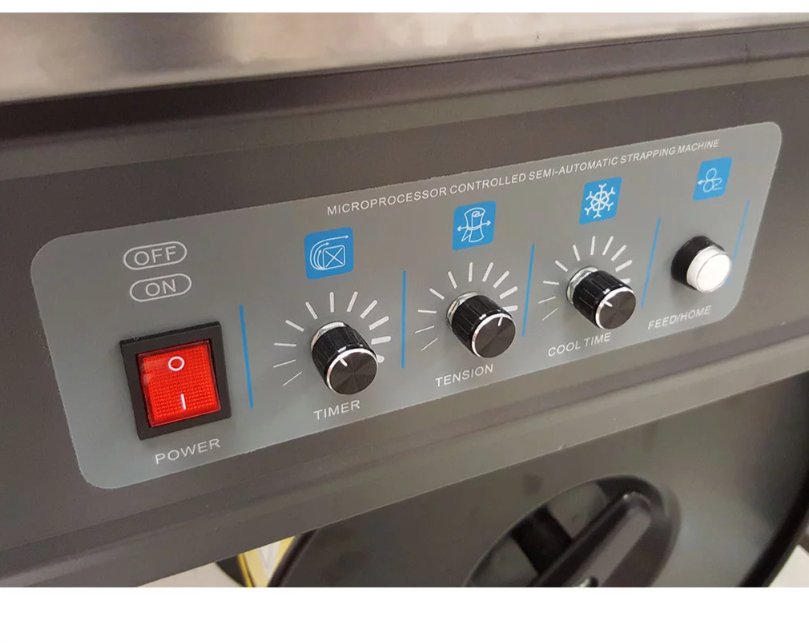

• Precision electronic strap tension control

• Adjustable table height for ergonomic operation

• Stainless steel tabletop for durability

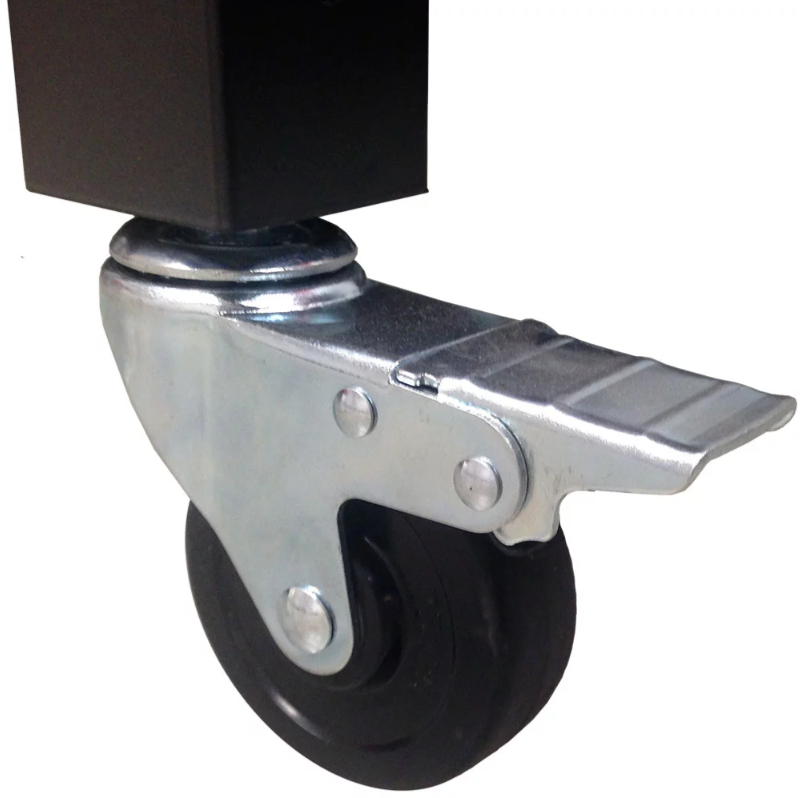

• Quad locking casters for easy mobility

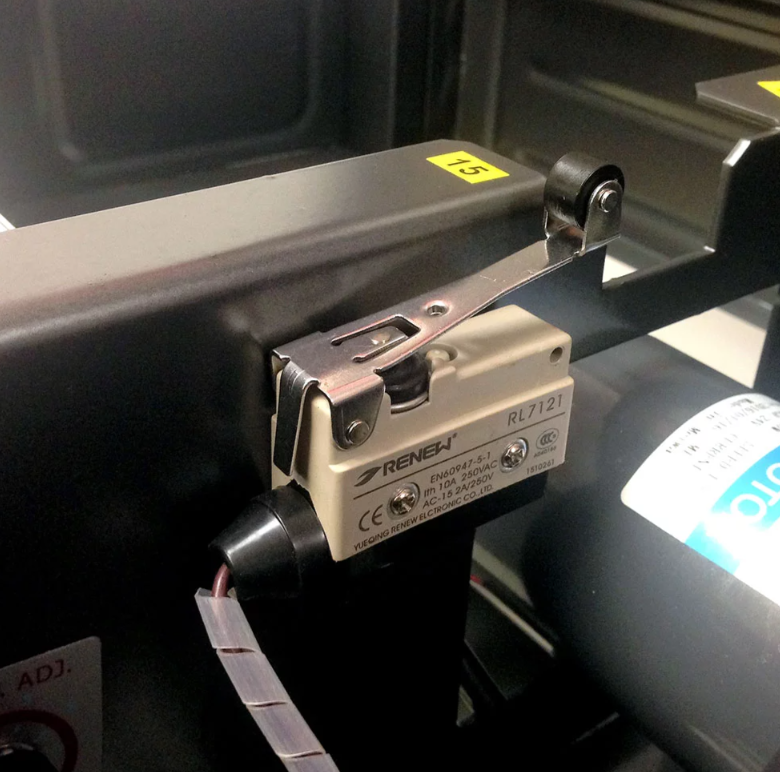

• Built-in safety switch for operator protection

Technical Specifications

• Power: 110VAC, 50/60Hz, 0.25kW

• Strapping Speed: 3 seconds per strap

• Strapping Force: 0–50kg (0–110lbs)

• Strap Size: Width 5–15mm (0.20–0.6in), Thickness 0.5–0.8mm (0.02–0.03in)

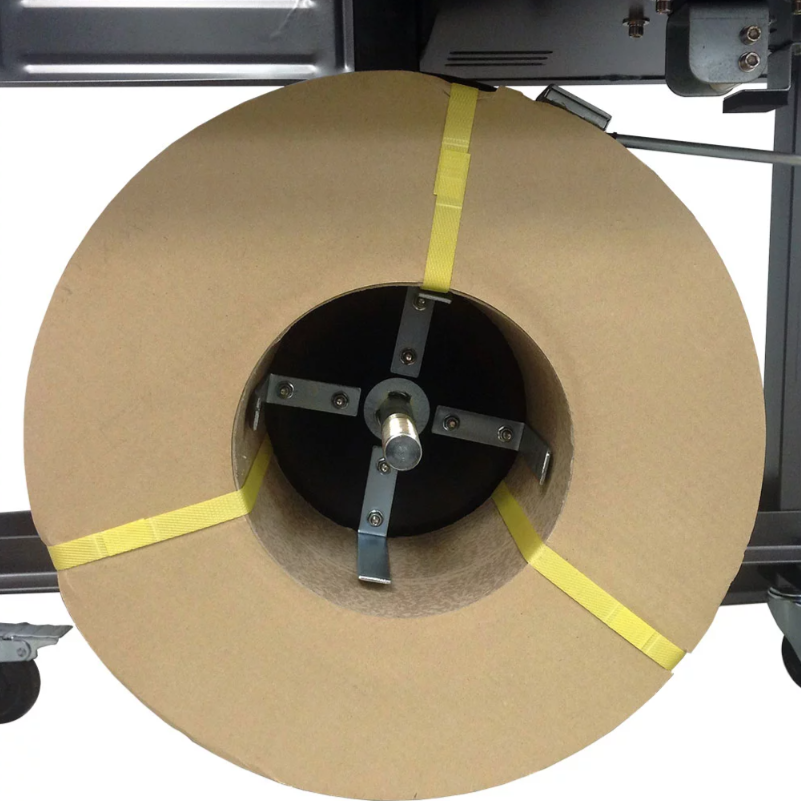

• Coil Size: Core Ø 200–210mm (7.9–8.3in), External Ø 400–500mm (15.7–19.7in), Width 160–190mm (6.3–7.4in)

• Machine Dimensions: 750mm x 550mm x 750mm (29.5in x 21.7in x 29.5in)

• Worktable Height: 750mm (29.5in)

• Weight: 74kg (162.8lbs)

• Operating Environment: Humidity ≤90%, Temperature 0–40°C (32–104°F)
